Central Limit Theorem & Distribution Convergence Visualizer

This interactive central limit theorem visualizer shows how binomial, Poisson, t, and chi-square distributions converge to the normal distribution. Explore distribution convergence with real-time parameter controls and side-by-side comparisons.

Use this tool

Try it now

The workspace opens on Binomial → Normal (Central Limit Theorem). Every module listed below has its own dedicated guide and the same tool already set to that method.

Interactive tool

The calculator loads as you approach this section so the guide remains fast on mobile connections.

Example preview

Binomial approaching Normal

Inputs: Compare p=0.5 as n increases from 10 to 100.
Representative result: At n=100, expected successes and failures are both 50 and the matched normal follows the center closely.

Illustrative only. Load the interactive tool to enter your own values and review assumptions.

Choose a supported module

Each module has its own canonical guide, complete server-rendered explanation, and compact tool already set to the method named in the URL.

Binomial → Normal (Central Limit Theorem) →Visualize binomial-to-normal convergence as n grows, check expected success and failure counts, continuity correction, tail error, and model limits.Poisson → Normal (Large λ) →Visualize Poisson-to-normal convergence as lambda grows, with moment matching, continuity correction, exact-tail checks, and interpretation limits.t-Distribution → Standard Normal →Visualize how Student t tails approach the standard normal as degrees of freedom grow, and compare critical values, assumptions, and limits.Chi-square → Normal (Large df) →Visualize centered and scaled chi-square convergence as degrees of freedom grow, with skewness, standardization, tail checks, and cautions.Binomial → Poisson (Rare Events) →Visualize the rare-event limit: hold the mean fixed while trials grow and the success probability shrinks, and watch the binomial settle onto Poisson.Poisson Process (Counts, Gaps, Arrivals) →Explore one Poisson process linking three exact views: Poisson counts, exponential gaps, and gamma arrival times, with the count-time identity checked live.Sample Means: LLN & CLT →Simulate running means and repeated sample means with a seeded generator to watch the Law of Large Numbers and the Central Limit Theorem take shape.

Watch the explanation

1:51 min

The player loads only after you press play. You can also watch on YouTube.

Read the complete transcript

LLN and CLT for Sample Means. The Law of Large Numbers and Central Limit Theorem describe two different views of sample means.

Start with a right-skewed exponential population whose mean and variance both equal one. Draw one independent sequence; individual values remain noisy and occasionally large. After each observation, divide the accumulated total by the number seen so far. The path can cross the target and move away again; convergence is not monotone. By two hundred observations, the running mean is usually much closer to the population mean. That is the LLN view: one average stabilizes, while the raw population stays skewed.

Now reset and draw one thousand independent samples, each containing two observations. Compress every pair to one mean, producing one thousand sample means. With sample size two, their distribution remains visibly right-skewed.

Increase each sample to thirty observations and repeat the same averaging operation. The means remain centered near one, even though the original observations were skewed. Their theoretical standard error is sigma over square root n, here one over square root thirty, about zero point one eight three.

Standardize each mean by subtracting one and dividing by that theoretical standard error. The standardized histogram now follows the standard normal reference much more closely. The CLT needs independent, identically distributed sampling and finite variance; larger n does not repair bias or dependence. Use LLN for one accumulating average, and CLT for the distribution of averages across repeated samples.

Try both simulations free at Distri Scope dot com.

How the central limit theorem visualizer works

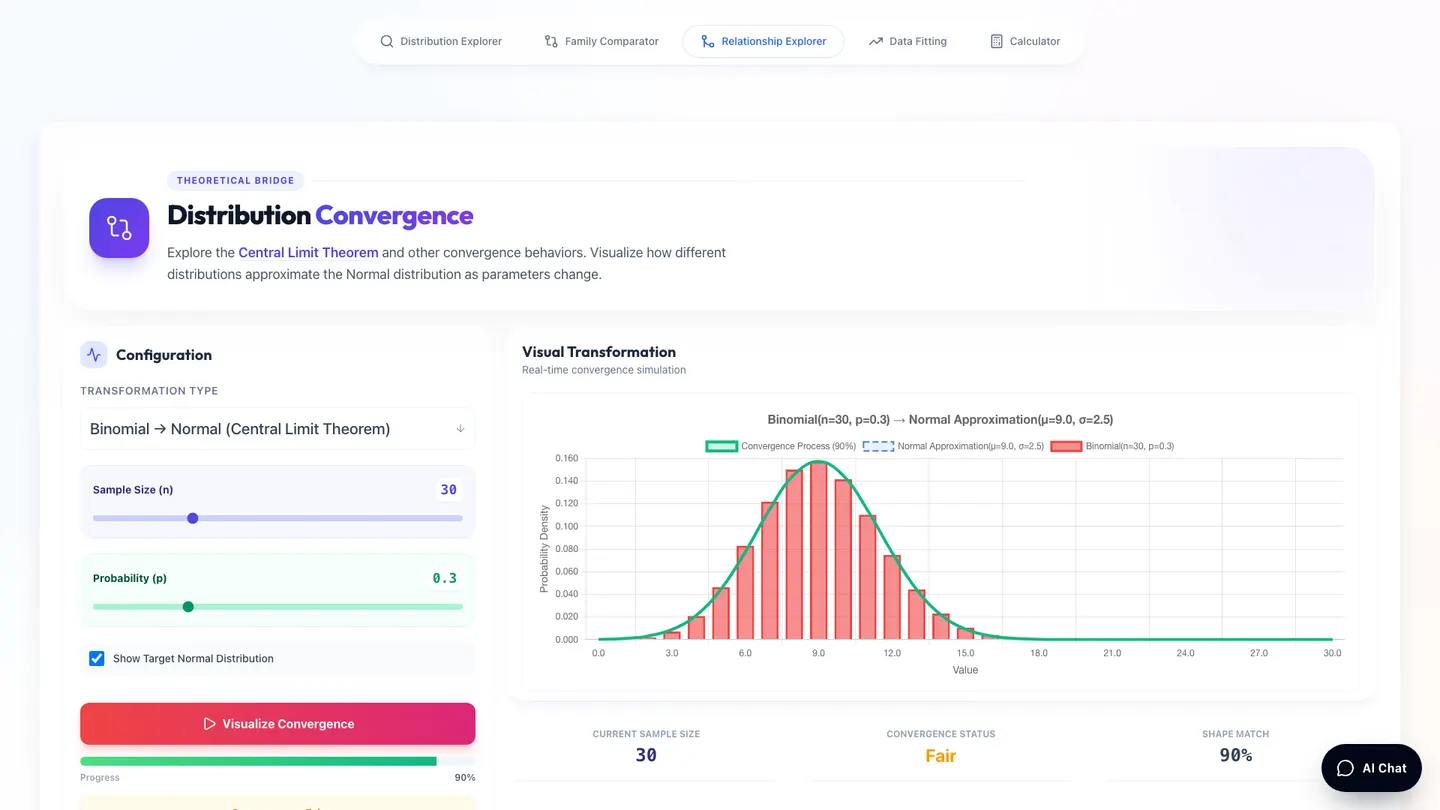

DistriScope’s Relationship Explorer turns common limiting relationships into controlled visual experiments. Instead of memorizing that one distribution can approximate another, you can change the governing parameter and watch the sequence move toward its limit. The view is intended to support probability courses, approximation checks, and clearer explanations of asymptotic reasoning.

Convergence is a mathematical statement with conditions, not a promise that every finite sample is close enough for every purpose. A graph can reveal the direction and rough speed of an approximation, but acceptable error depends on the probability, quantile, or decision being studied. The page therefore emphasizes both the relationship and the assumptions behind it.

Normal approximation is useful in several distinct settings, and each module keeps the original finite distribution visible. Binomial and Poisson variables remain discrete counts even when a normal curve provides a convenient approximation, so continuity correction and support still matter. Student’s t approaches the standard normal as its degrees of freedom increase, while a chi-square distribution must be centered and scaled before its shape can be compared meaningfully with a normal reference. In every case, the middle of the distribution may look close before the tails do. Use the controls to compare a sequence of parameter values, inspect the region relevant to your probability question, and confirm sensitive tail results with an exact calculation whenever one is available.

The parameter path also matters. A large binomial trial count is not enough when the success probability keeps the expected number of successes or failures small, and a Poisson rate should be assessed against the accuracy your task requires. For t and chi-square references, degrees of freedom control how quickly skewness or excess tail weight diminishes. State the finite parameter value, transformation, continuity correction when used, and target probability so another reader can judge the approximation rather than relying on a general claim that the curve looks normal.

Before you begin

Write down the statistical question, the unit of observation, and the quantity you want to estimate or explain before opening Distribution Convergence Explorer. Confirm where the values came from, what units they use, and whether repeated observations are independent. Preserve the original inputs and record every parameter, transformation, and option used in the workspace. This creates a reproducible trail and makes it easier to compare the result with another package.

Treat the graph and numerical output as evidence within a model, not as a substitute for the study design. If a conclusion changes when a plausible parameter or assumption changes, report that sensitivity. Clear documentation is part of statistical accuracy because it allows another person to understand what was calculated, test the same conditions, and identify where an interpretation may need revision. See the DistriScope methodology for formulas, numerical methods, and independent-verification guidance.

Distribution convergence visualizer capabilities

Visual limiting sequences

Move a sample-size or shape parameter and compare each finite distribution with its limiting curve.

Relationship-focused explanations

Connect the changing graph to the assumptions and intuition behind a common probability approximation.

Convergence diagnostics

Observe where curves remain different, especially around boundaries and tails that may converge more slowly.

Teaching-ready experiments

Repeat a parameter sequence and use the resulting plots to explain why an approximation improves.

LLN and CLT sample means

Choose a population model, sample size, and repetition count to contrast running-average convergence with standardized sampling distributions.

A responsible workflow

1Choose a relationship and read the stated parameter conditions before moving the controls.
2Record the starting distribution and the proposed limiting distribution in their exact parameterizations.
3Increase the governing parameter in several steps rather than jumping directly to a large value.
4Compare the center, spread, boundaries, and tails at every step; do not judge convergence from the peak alone.
5Test the approximation at the probability or quantile relevant to your actual problem.

Worked example: binomial to normal approximation

Consider a binomial count with a fixed success probability away from zero and one. As the number of trials grows, standardize the count and compare its probability mass with a normal reference. The center becomes smoother and the standardized shape approaches the bell curve. For a finite count, a continuity correction may improve an interval probability.

Interpretation

The approximation tends to be less reliable when expected successes or failures are small, and tail probabilities may require more caution than central intervals. “Large n” must be evaluated relative to the parameters and required accuracy.

How to interpret the result

Separate convergence in distribution from convergence of moments or almost-sure convergence. Similar terminology does not make the concepts interchangeable.
When using an approximation, report the finite model, the limiting model, any standardization, and why the conditions are plausible.
Check the region that matters. A graph may match well near the center while remaining materially different in the tail.
Use exact calculations when they are readily available and the approximation error could change a conclusion.

Key concepts behind the tool

A sequence and its limit

Convergence concerns a sequence indexed by a changing quantity such as sample size. Each finite member remains its own distribution even when it resembles the limit. The limiting model summarizes asymptotic behavior; it does not erase finite-sample error.

Standardization

Many limiting results require centering and scaling before a useful comparison appears. Standardization expresses observations relative to their changing mean and spread. Omitting that transformation can produce plots that move or widen instead of approaching the stated reference curve.

Approximation error

The relevant error depends on the task. Central CDF values, extreme quantiles, and tail probabilities can converge at different practical rates. A responsible approximation check targets the exact probability statement used by the final decision rather than general visual overlap.

Limitations and verification

Visual overlap is not a numerical error bound or proof of convergence.
Finite-sample accuracy varies by parameter values and by the functional being approximated.
Discretization and plotting resolution can make curves appear closer than the underlying probabilities.
The explorer teaches selected relationships and is not a complete catalog of convergence theorems.
